Brand: ET ENGINETEAM |
Code: PM006300 |
Title: Piston
Piston - PM006300 ET ENGINETEAM - 06H107065AB, 06H107099AM, 06H107065AM
Car: Skoda Superb Octavia, VW Golf Tiguan 2,0TFSi CCZA CCZB 2006+
| Supplementary Article/Supplementary Info: | with piston rings |
| Recess Depth 1 [mm]: | 6,2 mm |
| Compression Height [mm]: | 29,6 mm |
| Cylinder Bore [mm]: | 82,51 mm |
| Bolt Head Diameter [mm]: | 21 mm |
| Recess Diameter [mm]: | 50 mm |
| Bolt Length [mm]: | 56 mm |
| Valve Pocket Depth 1 [mm]: | 3 mm |
| Standard Size [STD]: | yes |

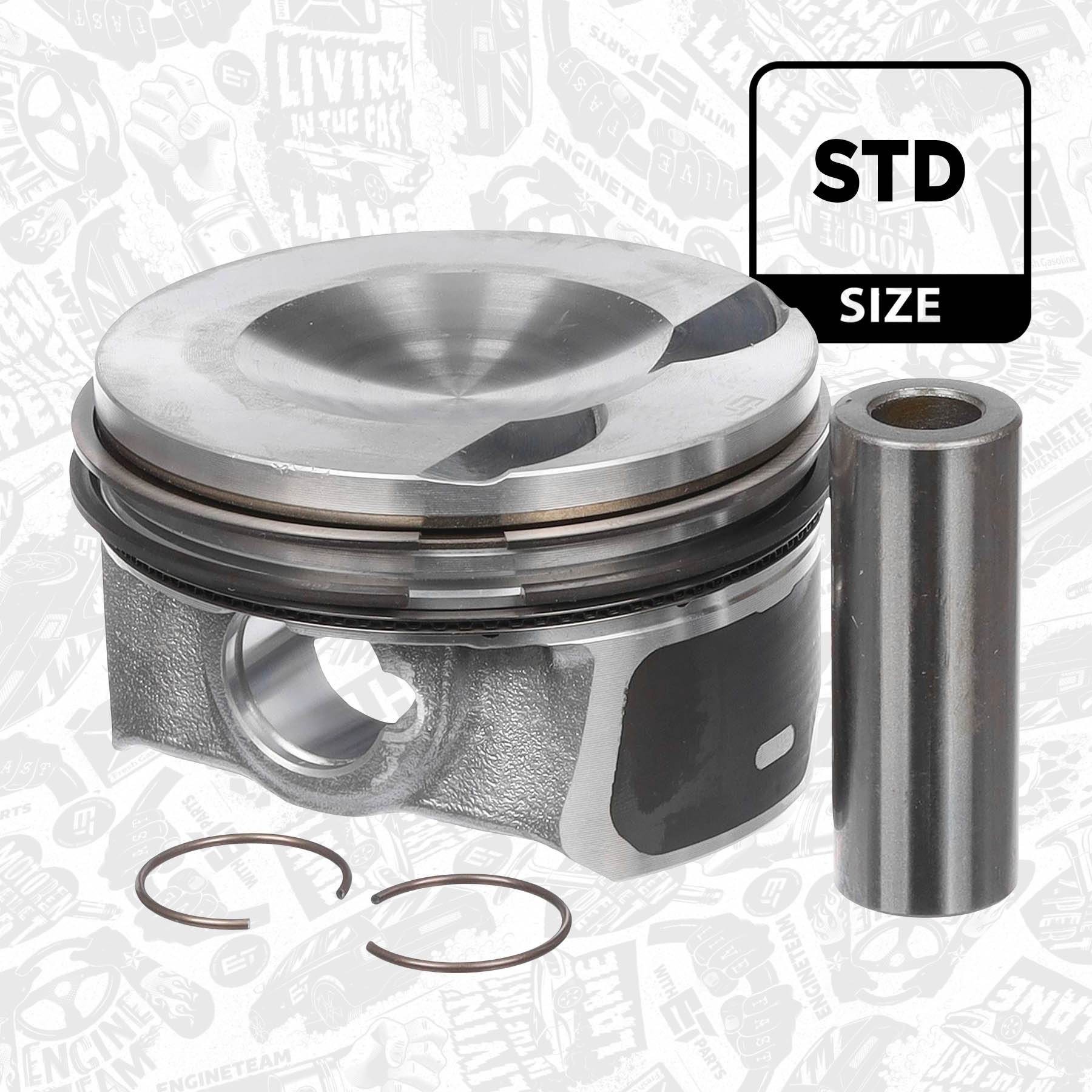

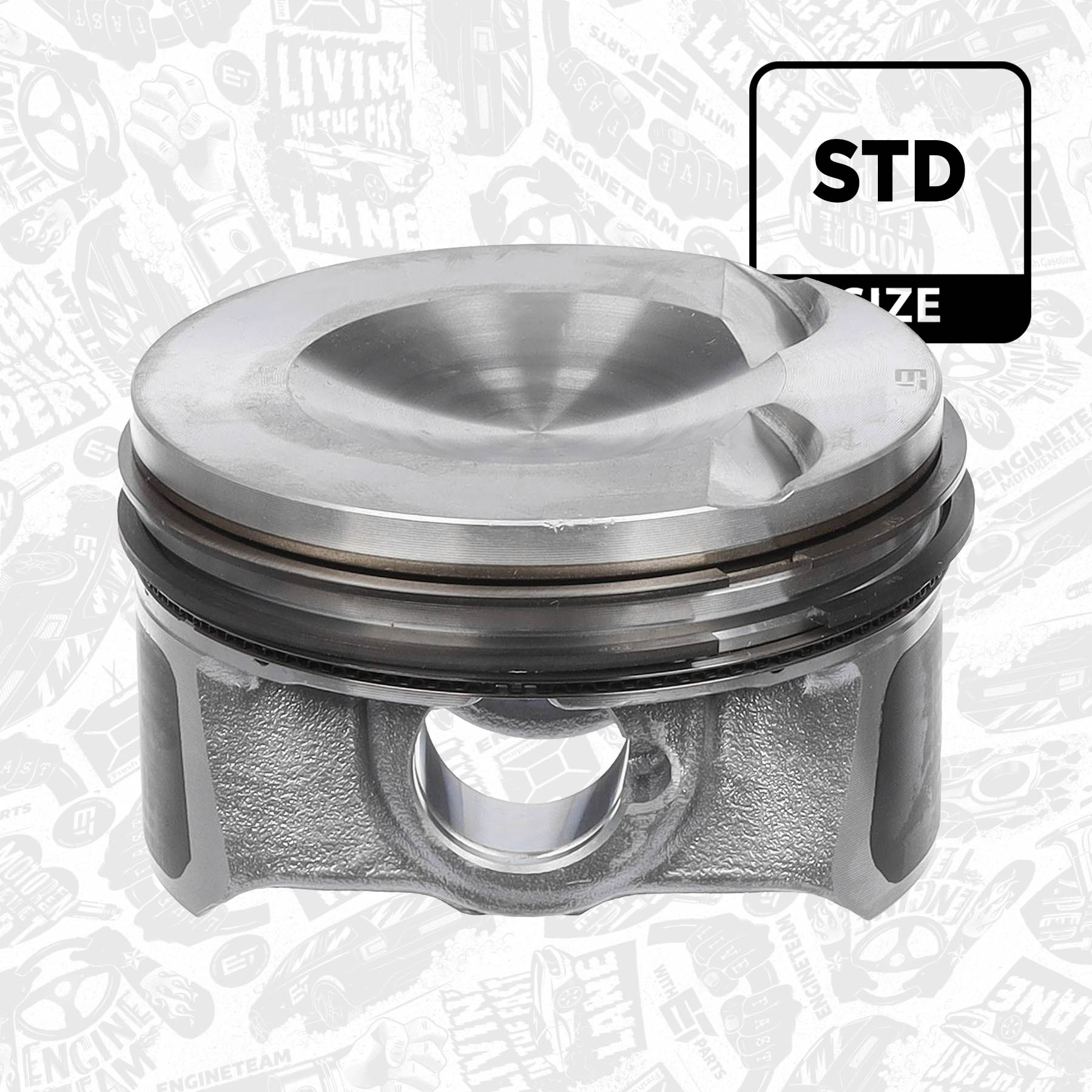

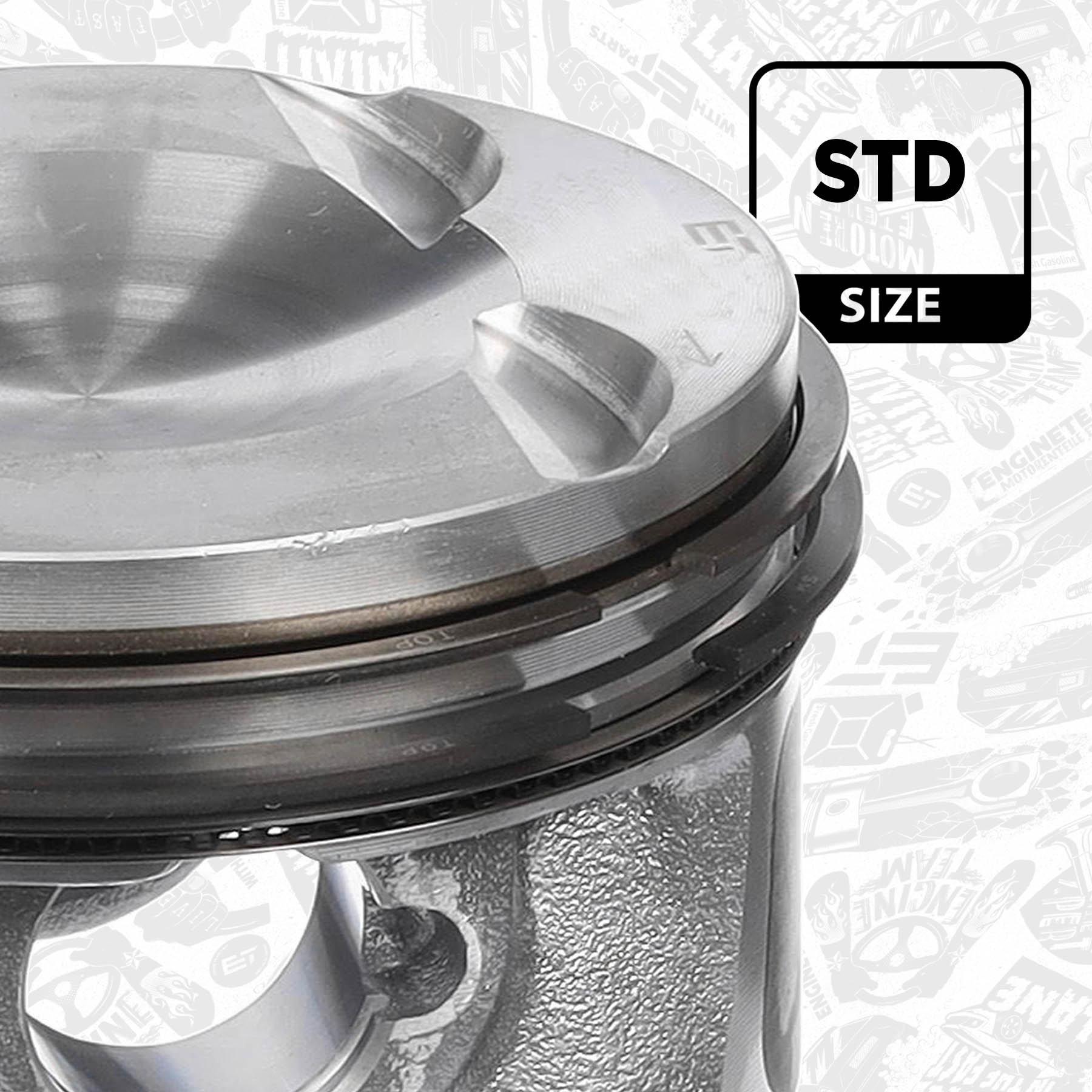

A complete piston ET EngineTeam in standard size, with piston rings and 21 mm pin. Suitable for CADA, CBFA, CCTA, CCZA, CCZC, CGMA, and other engine types. Mostly in VW Golf / Beetle / Passat / Jetta, Škoda Octavia / Superb, Audi A3 Sportback / TT / Q3, Seat Leon / Altea / Alhambra with 2.0 TFSI / TSI volumes, especially since 2006. OE numbers: 06H107065AB, 06H107065AM, 06H107065BE, 06H107099AM, 06J107065AH.
Also available in repair sizes - an oversize piston PM006325 (+0.25 mm) and an oversize piston PM006350 (+0.5 mm).
Important information: Over the years, manufacturing processes and some components have changed. Manufacturers gradually installed newer versions of pistons with various diameters of the combustion chamber at the piston bottom. We recommend that you verify these parameters before ordering. If you know the part number from the OE catalog, the identification is straightforward. To identify the part via engine or car model, it is recommended to send a VIN code when ordering so we can verify compatibility.
Safety information
Alternatives
General information
| Code: | PM006300ET |
| Brand: | ET ENGINETEAM |
| Title: | Piston |
| Car: | ŠKODA-VW |
Criteria
| Component Number: | 4x PM006300 |
| Bolt Head Diameter [mm]: | 21 mm |
| Cylinder Bore [mm]: | 82,51 mm |
| Recess Depth 1 [mm]: | 6,2 mm |
| Standard Size [STD]: | yes |
| Bolt Length [mm]: | 56 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Compression Height [mm]: | 29,6 mm |
| Valve Pocket Depth 1 [mm]: | 3 mm |
| Recess Diameter [mm]: | 50 mm |
| Scope of Supply: | includes components ET Engineteam + Elring + Kolbenschmidt |
