Brand: KOLBENSCHMIDT |
Code: 41197620 |
Title: Piston

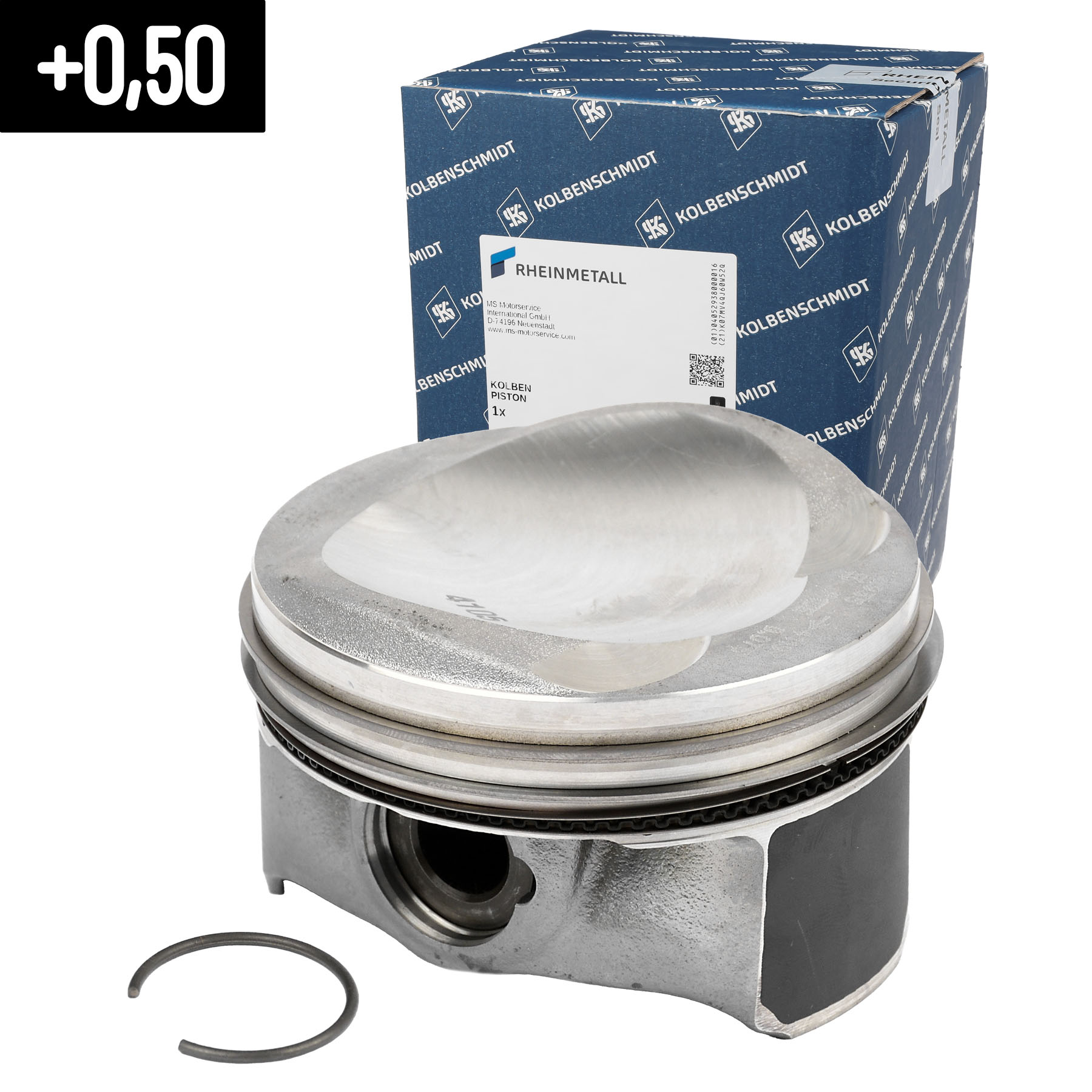

Piston - 41197620 KOLBENSCHMIDT
Car: ŠKODA-VWPiston Kolbenschmidt oversized (+0,5 mm compared to standard size). With ring carrier suitable for connecting rod and stronger pin (23 mm). In OE it substitutes older version of the piston 40761620.
Made for 1.8 TSFI / TFI engines of CDAA, CDAB, CDHA, CDHB types. For Audi A5, Seat Toledo, Škoda Yeti or VW Passat and others. Height of piston rings: 1,2 mm, 1,2 mm and 2 mm.
Note: This piston (OE: 06H107065DL substitutes in OE older oversized version of the piston 40761600 (OE: 06H107065CP) since 2011. Pistons are identical, the only distinctions are piston rings – mainly the wiper ring design:
- 40761620 uses 800077510050 (SLF type wiper seal – steel lamination ring without expander).
- 41197620 uses 800113810050 (DSF type wiper seal – double tapered with spiral expander).
Kolbenschmidt company makes original parts for OE and also same quality parts for aftermarket. They are among 100 most significant suppliers in automotive industry worldwide. It employs over 11 000 people on three different continents.
Safety information
Reference Numbers
Alternatives
General information

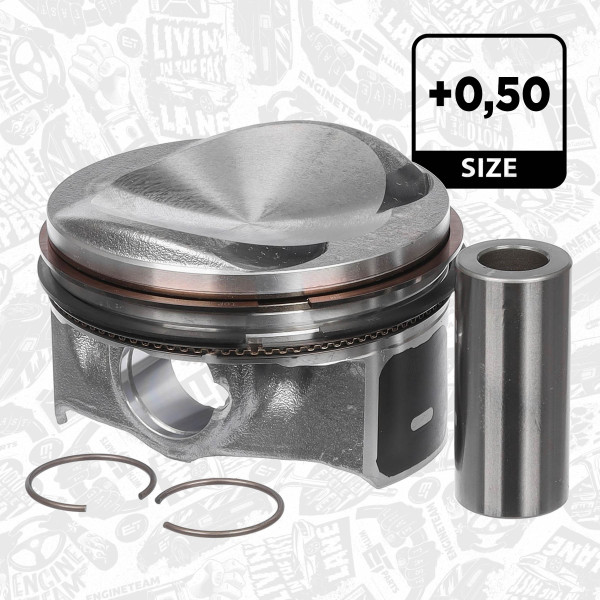

| Code: | PM006950 |
| Brand: | ET ENGINETEAM |
| Title: | Piston |
| Car: | ŠKODA-VW |
Criteria
| Supplementary Article/Supplementary Info: | with piston rings |
| Recess Depth 1 [mm]: | 4,75 mm |
| Oversize [mm]: | 0,5 mm |
| Compression Height [mm]: | 29,8 mm |
| Cylinder Bore [mm]: | 83,01 mm |
| Bolt Head Diameter [mm]: | 23 mm |
| Bolt Length [mm]: | 51 mm |
| Component Number: | PM006950 |
Show all
Show less
General information

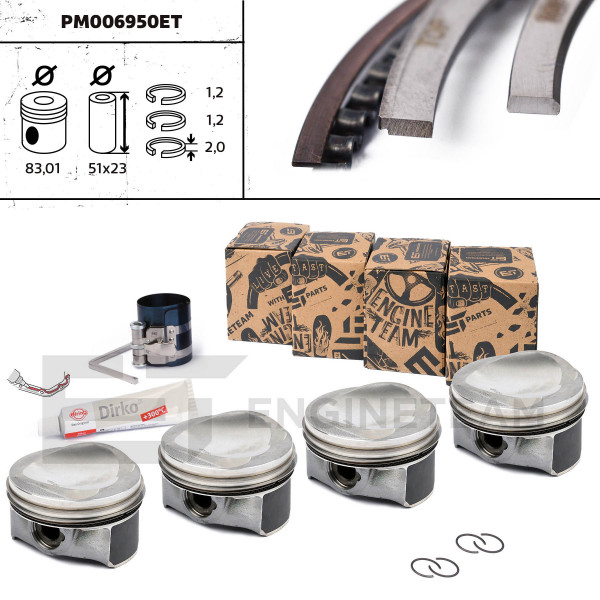

| Code: | PM006950ET |
| Brand: | ET ENGINETEAM |
| Title: | Piston |
| Car: | ŠKODA-VW |
Criteria
| Oversize [mm]: | 0,5 mm |
| Component Number: | 4x PM006950 |
| Bolt Head Diameter [mm]: | 23 mm |
| Cylinder Bore [mm]: | 83,01 mm |
| Recess Depth 1 [mm]: | 4,75 mm |
| Bolt Length [mm]: | 51 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Compression Height [mm]: | 29,8 mm |
| Scope of Supply: | includes components ET Engineteam + Elring + Kolbenschmidt |
Show all
Show less
General information

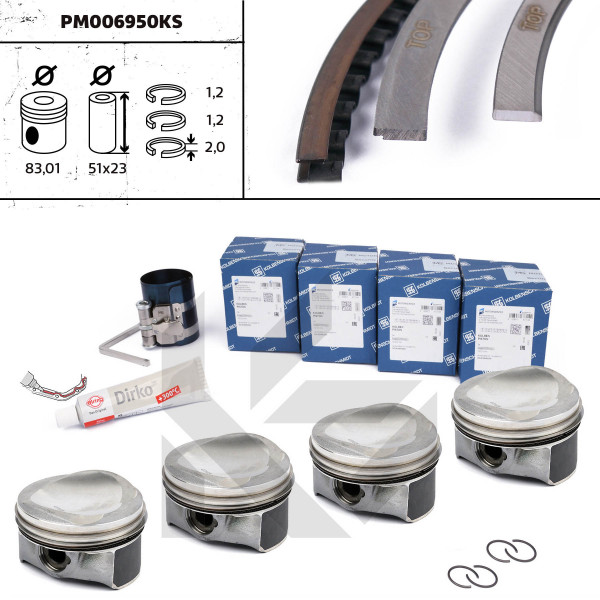

| Code: | PM006950KS |
| Brand: | KOLBENSCHMIDT |
| Title: | Piston |
| Car: | 41197620S |
Criteria
| Oversize [mm]: | 0,5 mm |
| Component Number: | 4x 41197620 |
| Bolt Head Diameter [mm]: | 23 mm |
| Cylinder Bore [mm]: | 83,01 mm |
| Recess Depth 1 [mm]: | 4,75 mm |
| Bolt Length [mm]: | 51 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Compression Height [mm]: | 29,8 mm |
Show all
Show less
