Practical repair kit for pistons for 2.0 TDI PD engines

Practical repair kit for pistons for 2.0 TDI PD engines

When installing the pistons in the BGW, BMM, BMP, BRT, BVH, CBHA, CBKA engine, keep in mind that one cylinder design belongs to cylinder 1 + 2 and a different design to cylinder 3 + 4.

For cylinder 1+2 it is necessary to use piston ET Engineteam PM009500 or Kolbenschmidt piston 40408600.
For cylinder 3+4 it is necessary to use piston ET Engineteam PM009600 or Kolbenschmidt piston 40409600.

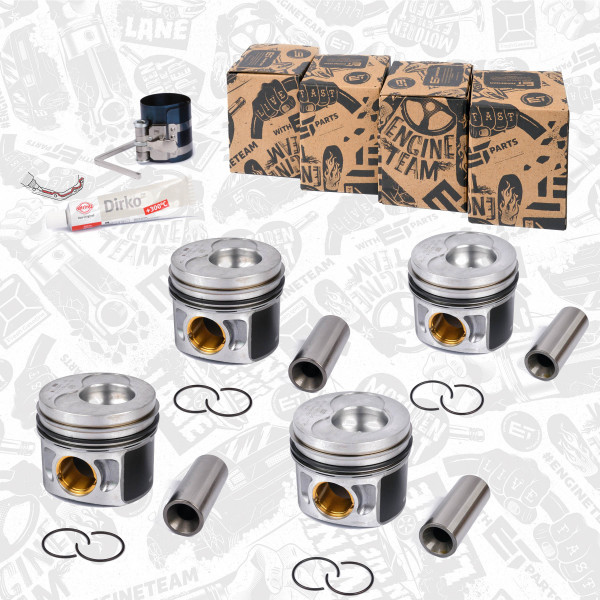

The practical PM009900ET piston set is now available from ET Engineteam brand. In this kit you get a complete set of pistons for all 4 cylinders, plus the practical installation tool HP0009 and sealing compound Elring 030.792

Don't forget to sign up for better prices.

Selection of items

PM009900ET - ET ENGINETEAM Piston

PM009900ET, Piston, Repair set - complete piston with rings and pin (for 1 engine), ET ENGINETEAM, Audi Seat Skoda VW A3 Alhambra Octavia II Caddy III 2,0TDI BMM BSS 2005+, 038107065HE, 038107065HM, 038107065KJ, 038107065KL, 038107065HF, 038107065HL, 038107065KK, 038107065KM

General information

Code:	PM009900ET
Brand:	ET ENGINETEAM
Title:	Piston
Car:	Audi Seat Skoda VW A3 Alhambra Octavia II Caddy III 2,0TDI BMM BSS 2005+
Weight :	3,80 kg

Criteria

Diameter [mm]:	81 mm
Compression Height [mm]:	45,8 mm
Bolt length [mm]:	66 mm
Bolt Ø [mm]:	26 mm
For OE number:	038 107 065HE
For OE number:	038 107 065HL

Detail

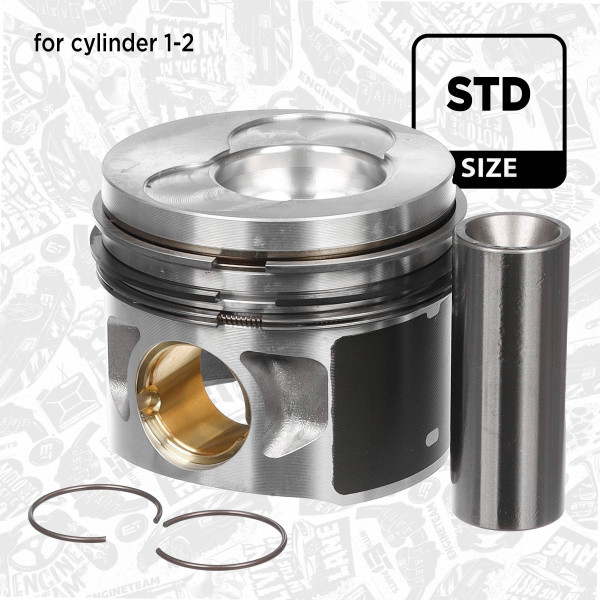

PM009500 - ET ENGINETEAM Piston

PM009500, Piston, Complete piston with rings and pin, ET ENGINETEAM, Audi Seat Skoda VW A3 Alhambra Octavia II Caddy III 2,0TDI BMM BSS 2005+, 038107065HE, 038107065HM, 038107065KJ, 038107065KL, 0280600, 40408600, 87-139500-10

General information

Code:	PM009500
Brand:	ET ENGINETEAM
Title:	Piston
Car:	Audi Seat Skoda VW A3 Alhambra Octavia II Caddy III 2,0TDI BMM BSS 2005+
Weight :	0,86 kg

Criteria

Diameter [mm]:	81 mm
Compression Height [mm]:	45,8 mm
Bolt length [mm]:	66 mm
For OE number:	038 107 065HE
Fitting Position:	for cylinder 1
Fitting Position:	for cylinder 2

Detail

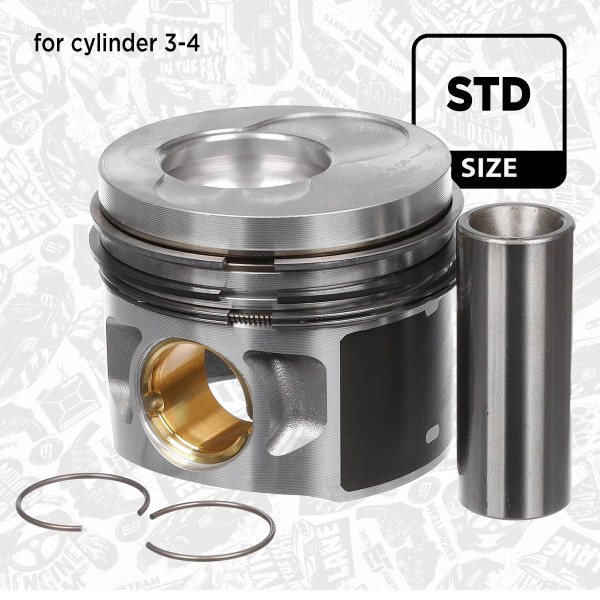

PM009600 - ET ENGINETEAM Piston

PM009600, Piston, Complete piston with rings and pin, ET ENGINETEAM, Audi Seat Skoda VW A3 Alhambra Octavia II Caddy III 2,0TDI BMM BSS 2005+, 038107065HF, 038107065HL, 038107065KK, 038107065KM, 0280700, 40409600, 87-139500-20

General information

Code:	PM009600
Brand:	ET ENGINETEAM
Title:	Piston
Car:	Audi Seat Skoda VW A3 Alhambra Octavia II Caddy III 2,0TDI BMM BSS 2005+
Weight :	0,86 kg

Criteria

Diameter [mm]:	81 mm
Compression Height [mm]:	45,8 mm
Bolt length [mm]:	66 mm
Bolt Ø [mm]:	26 mm
For OE number:	038 107 065HL
Fitting Position:	for cylinder 3-4

Detail

40408600 - KOLBENSCHMIDT Piston

40408600, Piston, Complete piston with rings and pin, KOLBENSCHMIDT, 038107065HE, 8713950010, 038107065HM, 038107065KJ, 038107065KL, 0280600

General information

Code:	40408600
Brand:	KOLBENSCHMIDT
Title:	Piston
Car:	ŠKODA-VW
Weight :	0,88 kg

Detail

40409600 - KOLBENSCHMIDT Piston

40409600, Piston, Complete piston with rings and pin, KOLBENSCHMIDT, 038107065HF, 8713950020, 038107065HL, 038107065KK, 038107065KM, 0280700

General information

Code:	40409600
Brand:	KOLBENSCHMIDT
Title:	Piston
Car:	ŠKODA-VW
Weight :	0,88 kg

Detail

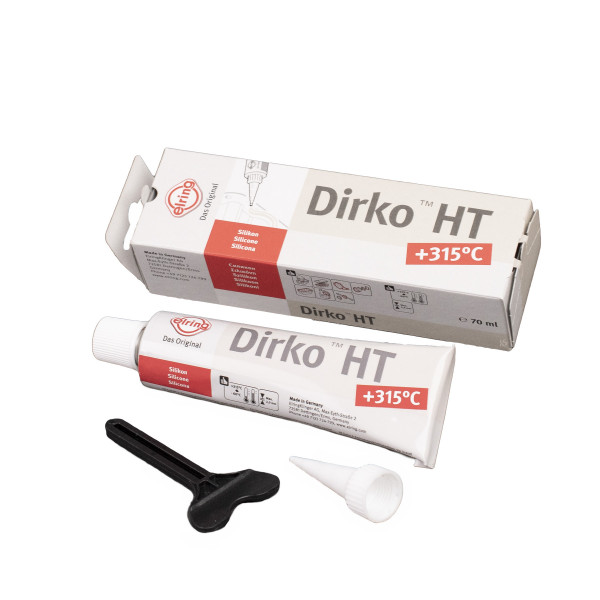

030.793 - ELRING Gasket, oil sump

030.793, Gasket, oil sump, Sealing compound, ELRING, 99000-31071, D176404A2, 99000-31071-000, D176404M2, 99000-34220, 99000-34220-000, 70-31414-10, HR354, HT200C

General information

Code:	030.793
Brand:	ELRING
Title:	Gasket, oil sump
Car:	ŠKODA-VW
Weight :	0,12 kg

Detail
