For the crankshaft on the 2.3 JTD engine, which can be found for example on Fiat Ducato, Iveco Daily vehicles - engines F1AE0481 - different crankshafts were installed in the series. For the correct identification of the crankshaft, please check these 3 characteristics.
- Measure the diameter of the opening in the crankshaft, whether it is 20 or 21 mm
- Check the dimensions of the bearings on the crankshaft and the connecting rods. These can be either 71/59 mm or 68/56 mm.
- Check the material of the crankshaft housing, whether it is aluminium or cast iron.
By checking these details, you will always be able to identify the correct crankshaft for your vehicle. Here you will find the clear illustrations for this topic.
If you do not follow these three rules, the part may be incorrectly identified and this will delay the repair of the vehicle. Therefore, we recommend that you check the VIN and follow these rules at the same time. Below you will find the required parts.
Don‘t forget to register and sign in, to see your individual prices.
General information

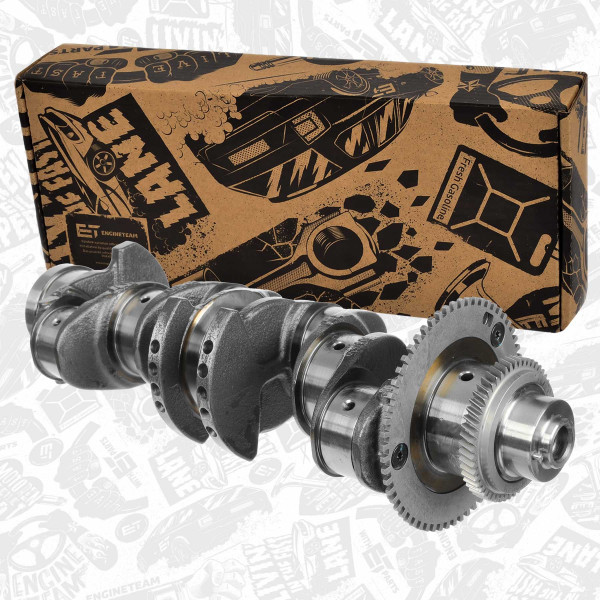

| Code: | HK0185 |
| Brand: | ET ENGINETEAM |
| Title: | Crankshaft |
| Car: | Fiat Ducato 2,3HPi F1AE0481 |
| Weight : | 18,00 kg |
General information

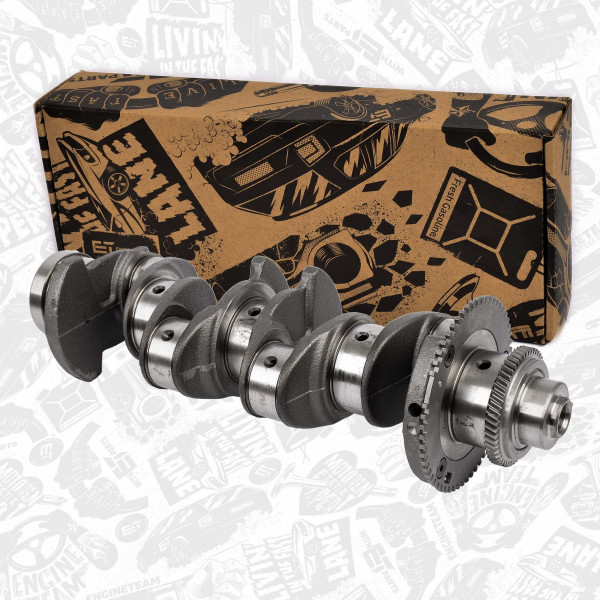

| Code: | HK0208 |
| Brand: | ET ENGINETEAM |
| Title: | Crankshaft |
| Car: | Iveco Daily F1AF411A 2,3 JTD 2014+ |
| Weight : | 16,50 kg |
Criteria
| Emission Standard: |
Euro 6
|
| For OE number: |
61-2074-00
|
| For OE number: |
60-2024-00
|
General information

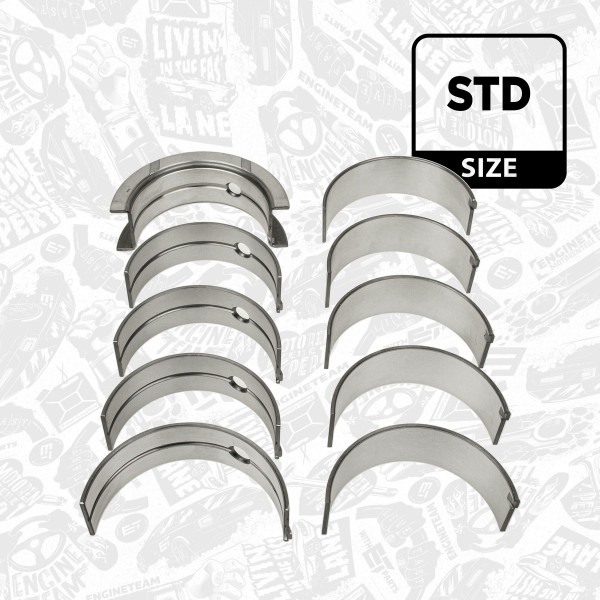

| Code: | LH000900 |
| Brand: | ET ENGINETEAM |
| Title: | Crankshaft Bearings |
| Car: | Fiat Ducato, Iveco Daily 2,3D/JTD F1AE0481 2002+ |
| Weight : | 0,65 kg |
General information

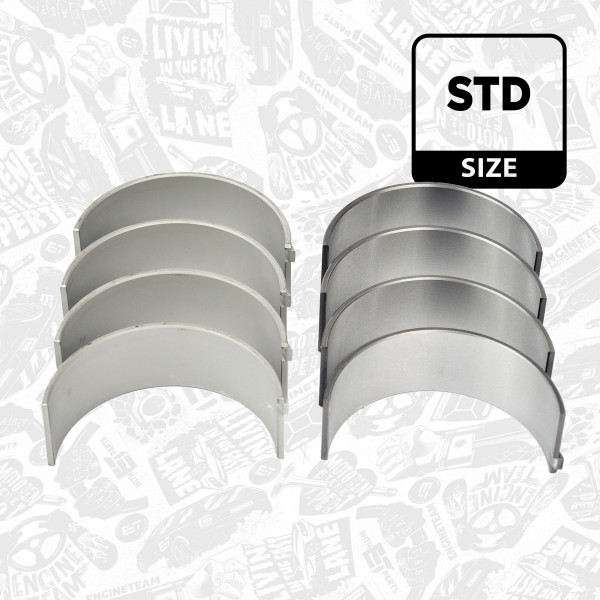

| Code: | LP000800 |
| Brand: | ET ENGINETEAM |
| Title: | Big End Bearings |
| Car: | Fiat Ducato, Iveco Daily 2,3D/JTD F1AE0481 2002-2011 |
| Weight : | 0,30 kg |
Criteria
| Standard Size [STD]: |
yes |
| Width [mm]: |
23
mm
|
General information

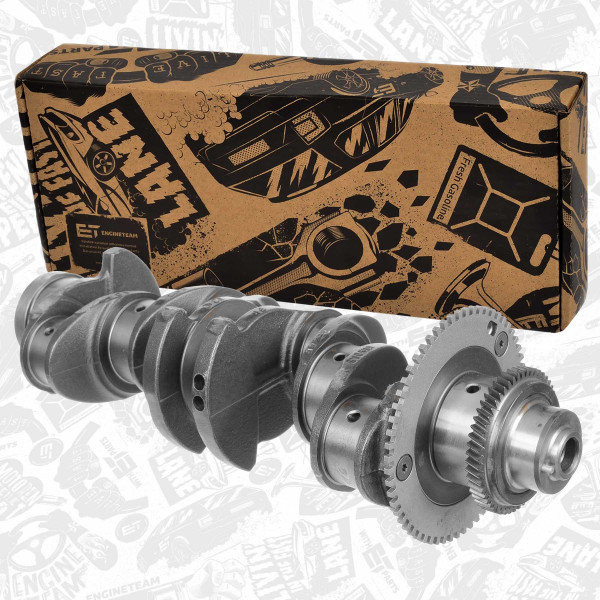

| Code: | HK0206 |
| Brand: | ET ENGINETEAM |
| Title: | Crankshaft |
| Car: | Fiat Ducato Daily 130 150 180 Multijet 2,3D F1AGL411 F1AFL411 EUR6 |
| Weight : | 16,45 kg |
Criteria
| Emission Standard: |
Euro 6
|
| Material: |
Cast Iron
|
General information
| Code: | HK0209 |
| Brand: | ET ENGINETEAM |
| Title: | Crankshaft |
| Car: | Iveco Daily F1AFL411A 2,3 JTD 2014+ |
| Weight : | 16,45 kg |
Criteria
| Emission Standard: |
Euro 6
|
| For OE number: |
500086037
|
| For OE number: |
500086170
|
General information

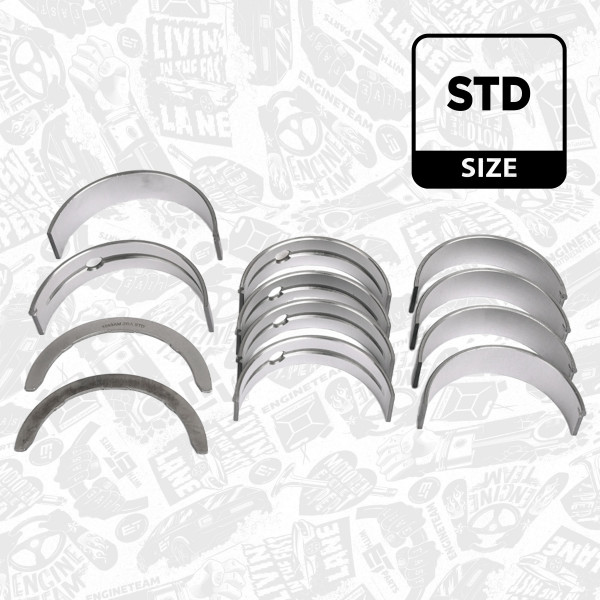

| Code: | LH004700 |
| Brand: | ET ENGINETEAM |
| Title: | Crankshaft Bearings |
| Car: | Fiat Ducato Iveco Daily 33S11 35S15 35C15 F1AFL411A* F1AFL411B* F1AFL411C* F1AFL411G* F1AFL411H* F1AFL411J* F1AFL411N* F1AFL411R* 2014+ Euro6 |
| Weight : | 0,65 kg |
Criteria
| Standard Size [STD]: |
yes |
| Quantity Unit: |
Set
|
General information

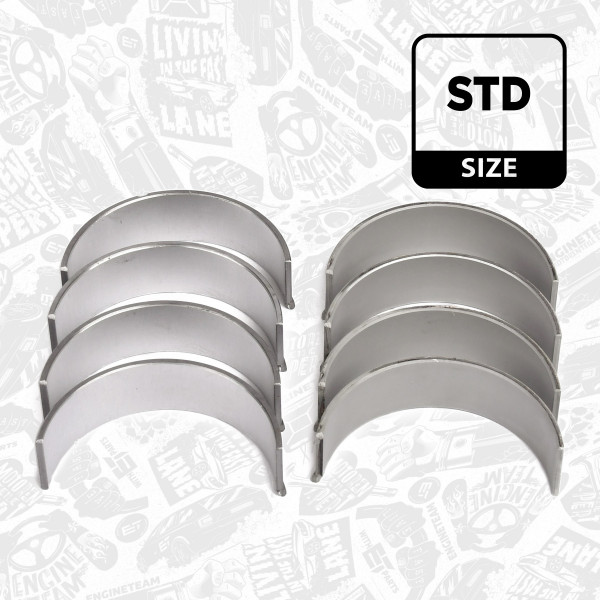

| Code: | LP005100 |
| Brand: | ET ENGINETEAM |
| Title: | Big End Bearings |
| Car: | Fiat Ducato, Iveco Daily 2,3D/JTD F1AFL411A 2014+ |
| Weight : | 0,30 kg |
