2021-08-26
ET kits eliminate the need to search for the correct pistons and connecting rods for your engine. Often there is a mix-up of pistons with different compression ratios, where customers buy incompatible components for their specific engine. Remember that for PUMA EUR4 and EUR5 engines, there are at least three variants of pistons that cannot be interchanged. Often mechanics make the mistake of automatically ordering the version of pistons and connecting rods they see first.
Earlier we presented them sets with crankshafts, bearings and connecting rods. Now we extend them with pistons in standard size (STD) or in repair size (+0,50).
These sets are e.g. for vehicles Ford Transit/Tourneo, Peugeot Boxer, Citroën Jumper for engines 4HG, 4HH, 4HJ, CVRA, CVRC, CYFA, DRFA, PGFA, PGFB, P8FA, P8FB, QVFA, QWFA, 4HU, 4HV 2,2 TDCI/HDI from year 2000.
Content of the new sets :
Crankshaft set HK0207VR1
- Crankshaft HK0207
- Connecting rod OM0039 - The distance between the nearest inner edges of the small eye for the piston pin and the large eye for the crankshaft is 112.0mm.
- Connecting rod bearing LP002800 - set
- Main bearing LH002700 - set
Crankshaft set HK0207VR2
- Crankshaft HK0207
- Connecting rod set OM0040 - The distance between the nearest inner edges of the small eye for piston pin and the large eye for the crankshaft is 117,0mm
- Connecting rod bearing LP002800 - Set
- Main bearing LH002700 - set
Crankshaft set HK0207VR3
- Crankshaft HK0207
- Connecting rod OM0039 - The distance between the nearest inner edges of the small eye for piston pin and the large eye for the crankshaft is 112.0mm
- Connecting rod bearing LP002800 - set
- Main bearing LH002700 - set
- 4x pistons PM004700 - standard size STD
Crankshaft set HK0207VR4
- Crankshaft HK0207
- Connecting rod set OM0040 - The distance between the nearest inner edges of the small eye for piston pin and the large eye for the crankshaft is 117.0mm
- Connecting rod bearing LP002800 - Set
- Main bearing LH002700 - set
- 4x pistons PM001200 -standard size STD
Crankshaft set HK0207VR5
- Crankshaft HK0207
- Connecting rod OM0039 - The distance between the nearest inner edges of the small eye for piston pin and the large eye for the crankshaft is 112.0mm
- Connecting rod bearing LP002800 - set
- Main bearing LH002700 - set
- 4x piston PM004750 - repair dimension +0,50
Crankshaft set HK0207VR6
- Crankshaft HK0207
- Connecting rod set OM0040 - The distance between the nearest inner edges of the small eye for piston pin and the large eye for the crankshaft is 117.0mm
- Connecting rod bearing LP002800 - Set
- Main bearing LH002700 - Set
- 4x pistons PM001250 -repair dimension +0,50
Don‘t forget to register and sign in, to see your individual prices.
General information
| Code: | HK0207VR1 |
| Brand: | ET ENGINETEAM |
| Title: | Crankshaft |
| Car: | Ford Transit, Citroen Jumper, Peugeot Boxer, Fiat Ducato 2,2HDI PUMA |
| Weight : | 23,74 kg |
Criteria
| Supplementary Article/Supplementary Info: |
with bearings
|
| Machining: |
Forged
|
General information
| Code: | HK0207VR2 |
| Brand: | ET ENGINETEAM |
| Title: | Crankshaft |
| Car: | Citroen Fiat Ford Peugeot 2,2DHDi TDCi 4HU 4HV PUMA 2004+ |
| Weight : | 23,74 kg |
Criteria
| Full Set: |
yes |
| Supplementary Article/Supplementary Info: |
with bearings
|
| Machining: |
Forged
|
General information
| Code: | HK0207VR3 |
| Brand: | ET ENGINETEAM |
| Title: | Crankshaft |
| Car: | Ford Transit, Citroen Jumper, Peugeot Boxer, Fiat Ducato 2,2HDI PUMA CVRA DRFA 2011+ |
| Weight : | 26,54 kg |
Criteria
| Supplementary Article/Supplementary Info 2: |
for keystone connecting rod
|
| Supplementary Article/Supplementary Info: |
with piston rings
|
| Supplementary Article/Supplementary Info: |
with bearings
|
| Machining: |
Forged
|
| Standard Size [STD]: |
yes |
General information
| Code: | HK0207VR4 |
| Brand: | ET ENGINETEAM |
| Title: | Crankshaft |
| Car: | Citroen Fiat Ford Peugeot 2,2DHDi TDCi 4HU 4HV PUMA 2004+ |
| Weight : | 26,54 kg |
Criteria
| Supplementary Article/Supplementary Info: |
with piston rings
|
| Supplementary Article/Supplementary Info: |
with bearings
|
| Machining: |
Forged
|
| Standard Size [STD]: |
yes |
General information
| Code: | HK0207VR5 |
| Brand: | ET ENGINETEAM |
| Title: | Crankshaft |
| Car: | Ford Transit, Citroen Jumper, Peugeot Boxer, Fiat Ducato 2,2HDI PUMA CVRA DRFA 2011+ |
| Weight : | 26,54 kg |
Criteria
| Supplementary Article/Supplementary Info: |
with piston rings
|
| Supplementary Article/Supplementary Info: |
with bearings
|
| Machining: |
Forged
|
| Component Number: |
OM0039
|
| Piston Protrusion [mm]: |
0,5
mm
|
General information
| Code: | HK0207VR6 |
| Brand: | ET ENGINETEAM |
| Title: | Crankshaft |
| Car: | Citroen Fiat Ford Peugeot 2,2DHDi TDCi 4HU 4HV PUMA 2004+ |
| Weight : | 26,54 kg |
Criteria
| Supplementary Article/Supplementary Info: |
with piston rings
|
| Supplementary Article/Supplementary Info: |
with bearings
|
| Machining: |
Forged
|
| Component Number: |
OM0040
|
| Piston Protrusion [mm]: |
0,5
mm
|
General information
| Code: | OM0039 |
| Brand: | ET ENGINETEAM |
| Title: | Connecting Rod |
| Car: | Ford Transit, Citroen Jumper, Peugeot Boxer, Fiat Ducato 2,2HDI PUMA |
| Weight : | 6,00 kg |
Criteria
| Tightening Torque [Nm]: |
60
Nm
|
| Full Set: |
yes |
| Hole Spacing [mm]: |
112
mm
|
| Connecting Rod Design: |
Trapezoidal Connecting Rod
|
| Weight [g]: |
882
g
|
| Machining: |
cracked
|
| Machining: |
Forged
|
| Pin Diameter [mm]: |
30
mm
|
Show all
Show less
General information
| Code: | OM0040 |
| Brand: | ET ENGINETEAM |
| Title: | Connecting Rod |
| Car: | Citroen Fiat Ford Peugeot 2,2DHDi TDCi 4HU 4HV PUMA 2004+ |
| Weight : | 3,60 kg |
Criteria
| Tightening Torque [Nm]: |
60
Nm
|
| Hole Spacing [mm]: |
117
mm
|
| Connecting Rod Design: |
Trapezoidal Connecting Rod
|
| Standard Set: |
yes |
| Weight [g]: |
873
g
|
| Machining: |
Forged
|
| Machining: |
cracked
|
| Pin Diameter [mm]: |
30
mm
|
Show all
Show less
General information
| Code: | PM004700 |
| Brand: | ET ENGINETEAM |
| Title: | Piston |
| Car: | Ford Duratorq 2,2TDCi 2011+ |
| Weight : | 0,70 kg |
Criteria
| Supplementary Article/Supplementary Info: |
with piston rings
|
| Supplementary Article/Supplementary Info 2: |
with piston ring carrier
|
| Supplementary Article/Supplementary Info 2: |
with cooling duct
|
| Recess Depth 1 [mm]: |
16,2
mm
|
| Compression Height [mm]: |
48,42
mm
|
| Cylinder Bore [mm]: |
86
mm
|
| Bolt Head Diameter [mm]: |
30
mm
|
| Recess Diameter [mm]: |
49
mm
|
| Bolt Length [mm]: |
66,75
mm
|
| Standard Size [STD]: |
yes |
Show all
Show less
General information
| Code: | PM001200 |
| Brand: | ET ENGINETEAM |
| Title: | Piston |
| Car: | Citroen Fiat Ford Peugeot 2,2D/HDi/TDCi 4HU/4HV 2004+ |
| Weight : | 0,90 kg |
Criteria
| Supplementary Article/Supplementary Info: |
with piston rings
|
| Supplementary Article/Supplementary Info 2: |
with piston ring carrier
|
| Supplementary Article/Supplementary Info 2: |
with cooling duct
|
| Supplementary Article/Supplementary Info 2: |
for keystone connecting rod
|
| Recess Depth 1 [mm]: |
15,85
mm
|
| Compression Height [mm]: |
43,42
mm
|
| Cylinder Bore [mm]: |
86
mm
|
| Bolt Head Diameter [mm]: |
30
mm
|
| Recess Diameter [mm]: |
46,90
mm
|
| Bolt Length [mm]: |
66,85
mm
|
| Standard Size [STD]: |
yes |
Show all
Show less
General information

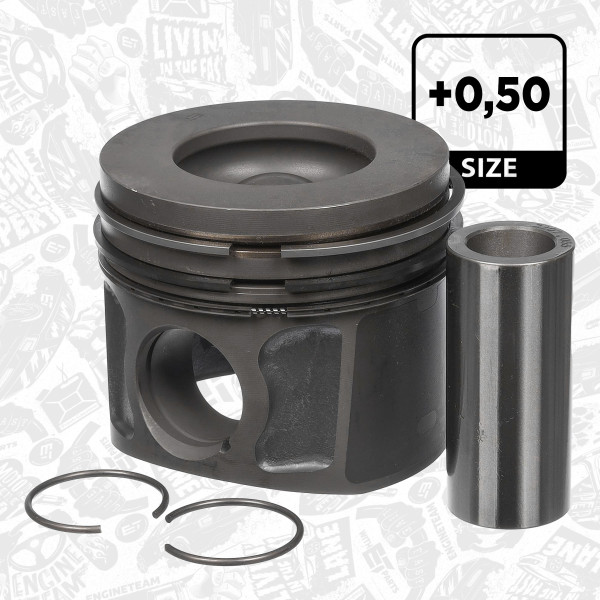

| Code: | PM004750 |
| Brand: | ET ENGINETEAM |
| Title: | Piston |
| Car: | Ford Duratorq 2,2TDCi 2011+ |
| Weight : | 0,90 kg |
Criteria
| Supplementary Article/Supplementary Info: |
with piston rings
|
| Supplementary Article/Supplementary Info 2: |
with piston ring carrier
|
| Supplementary Article/Supplementary Info 2: |
with cooling duct
|
| Recess Depth 1 [mm]: |
16,2
mm
|
| Oversize [mm]: |
0,5
mm
|
| Compression Height [mm]: |
48,42
mm
|
| Cylinder Bore [mm]: |
86,5
mm
|
| Bolt Head Diameter [mm]: |
30
mm
|
| Recess Diameter [mm]: |
49
mm
|
| Bolt Length [mm]: |
66,75
mm
|
Show all
Show less
General information
| Code: | PM001250 |
| Brand: | ET ENGINETEAM |
| Title: | Piston |
| Car: | Fiat 4HV 4HU Citroen Peugeot Ford 2,2TDCi 2,2HDi 2006+ |
| Weight : | 0,90 kg |
Criteria
| Supplementary Article/Supplementary Info: |
with piston rings
|
| Supplementary Article/Supplementary Info 2: |
with piston ring carrier
|
| Supplementary Article/Supplementary Info 2: |
with cooling duct
|
| Supplementary Article/Supplementary Info 2: |
for keystone connecting rod
|
| Recess Depth 1 [mm]: |
15,85
mm
|
| Oversize [mm]: |
0,5
mm
|
| Compression Height [mm]: |
43,42
mm
|
| Cylinder Bore [mm]: |
86,5
mm
|
| Bolt Head Diameter [mm]: |
30
mm
|
| Recess Diameter [mm]: |
46,90
mm
|
| Bolt Length [mm]: |
66,85
mm
|
Show all
Show less
General information
| Code: | LP002800 |
| Brand: | ET ENGINETEAM |
| Title: | Big End Bearings |
| Car: | Citroen Fiat Ford Peugeot 2,0/2,2D/HDi/TDCi 2000+ |
| Weight : | 0,22 kg |
General information
| Code: | LH002700 |
| Brand: | ET ENGINETEAM |
| Title: | Crankshaft Bearings |
| Car: | Citroen Fiat Ford Peugeot 2,2D/HDi 4HU/4HV 2000+ |
| Weight : | 0,52 kg |
Criteria
| Quantity: |
10
|
| Quantity Unit: |
Set
|
| Standard Size [STD]: |
yes |
General information
| Code: | HK0207 |
| Brand: | ET ENGINETEAM |
| Title: | Crankshaft |
| Car: | Citroen Fiat Ford Peugeot 2,2DHDi TDCi 4HU 4HV 2004+ |
| Weight : | 17,00 kg |
