Brand: KOLBENSCHMIDT |
Code: 50009180 |

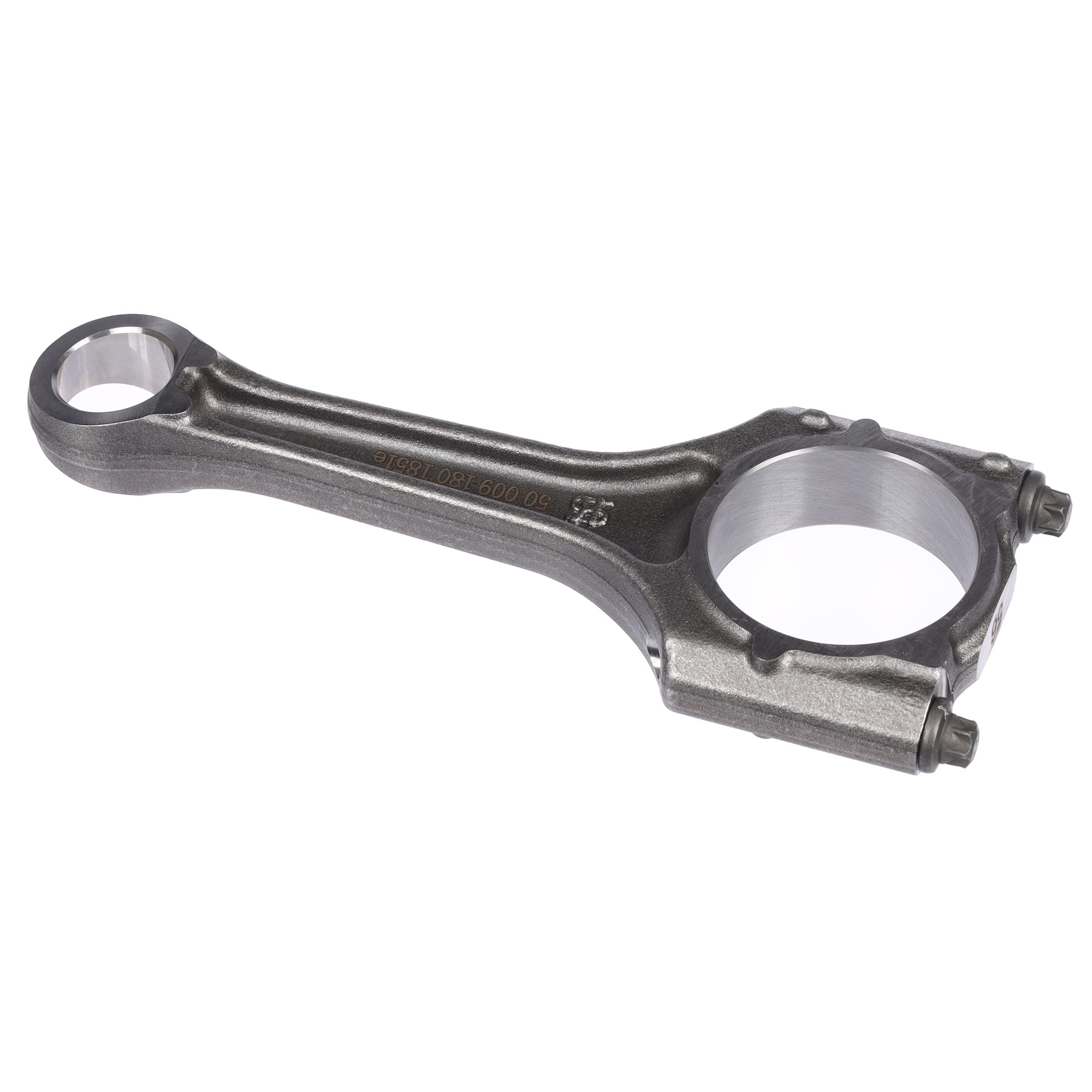

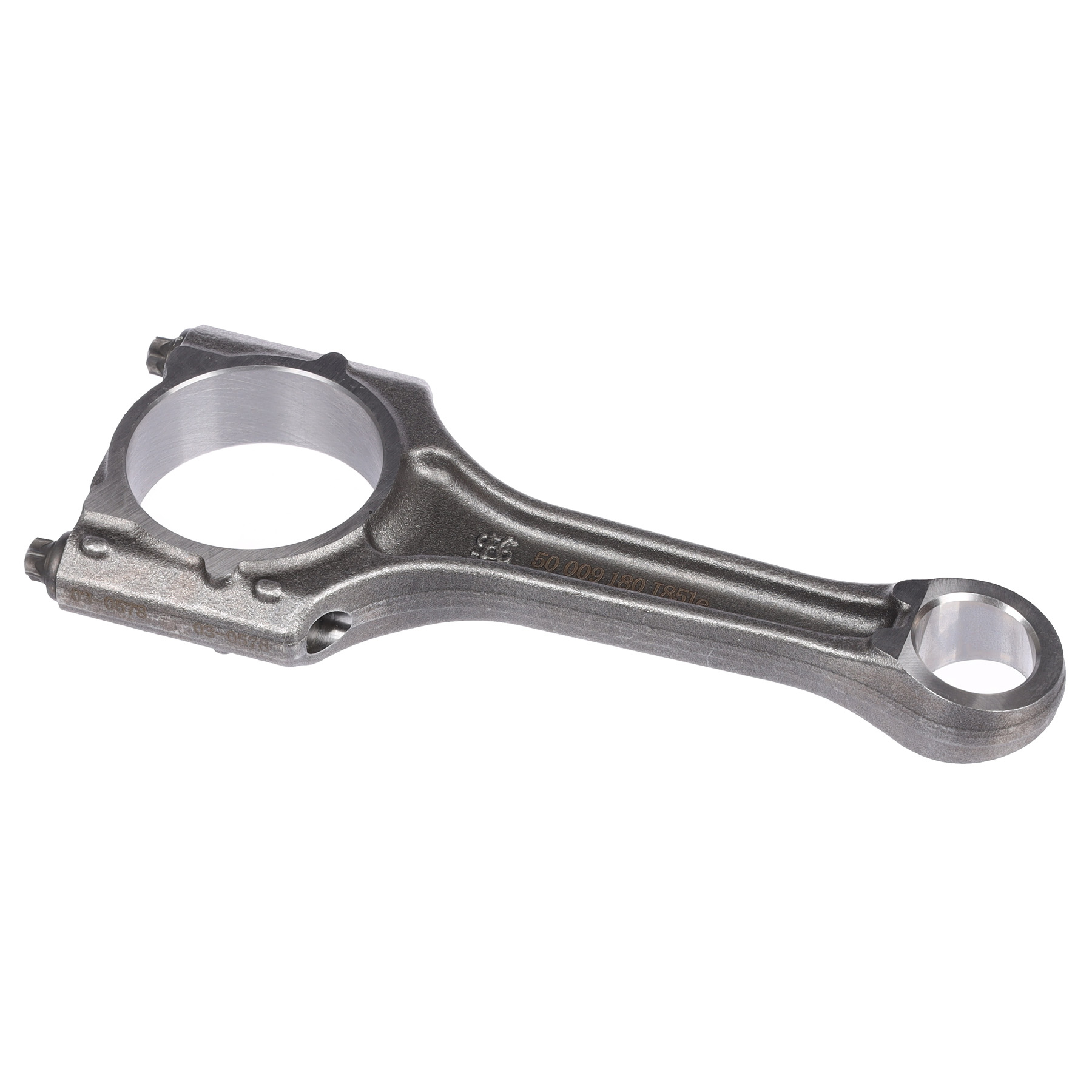

Title: Connecting Rod
Connecting Rod - 50009180 KOLBENSCHMIDT - 06J198401H
Car: ŠKODA-VWThe pistons for the 1.8 TFSI and TSI engines were modified in the series. The new pistons are equipped with optimized, three-piece oil control rings and a DLC pin. Because the piston pin diameter was also changed from 21 mm to 23 mm during the modification, the connecting rod must also be replaced with replacing the pistons.Motorservice is now offering suitable pistons and connecting rods for the aftermarket. The connecting rods are offered as a motor kit (4 piece), as their weights are precisely coordinated.
Attention:
To prevent imbalances due to different weights of the components, Motorservice recommends always replacing the pistons and connecting rods of an engine completely.
Articles
-
1,8TSI conrods and pistons - 23mm diameter
List of conrods (with 23mm bore), related pistons and rebuild kits for CDAA, CDAB, CDHA, CDHB engines for 1,8TSI Škoda, VW, Audi, Seat vehicles produced since 2006 onwards
Categories
Safety information
Alternatives
General information
| Code: | OM0037 |
| Brand: | ET ENGINETEAM |
| Title: | Connecting Rod |
| Car: | Audi Seat Skoda VW A3 Sportback TT Roadster Altea XL Octavia II Superb II Yeti Golf 1,8 TSI CDAA CDHB 2010+ |
Criteria
| Tightening Torque [Nm]: | 50 Nm |
| Diameter of large connecting rod big end [mm]: | 50,6 mm |
| Dia. of small connecting rod big end (with bushing) [mm]: | 23 mm |
| Hole Spacing [mm]: | 111,2 mm |
| Processing: | Forged |
| Processing: | cracked |
| Connecting Rod Design: | Trapezoidal Connecting Rod |
