Items for cross-reference number 0628 T1
General information
| Code: | OM0050 |
| Brand: | ET ENGINETEAM |
| Title: | Connecting Rod |
| Car: | BMW MINI PEUGEOT 1 3 CLUBMAN COUNTRYMAN 308 308CC 118 I 1,6 THP N13 B16 A 2010+ |
| Weight : | 0,47 kg |
Criteria
| Tightening Torque [Nm]: | 45 Nm |
| Diameter of large connecting rod big end [mm]: | 48 mm |
| Dia. of small connecting rod big end (with bushing) [mm]: | 20 mm |
| Hole Spacing [mm]: | 104,5 mm |
| Machining: | cracked |
| Machining: | Forged |
| Connecting Rod Design: | Trapezoidal Connecting Rod |
Show all
Show less

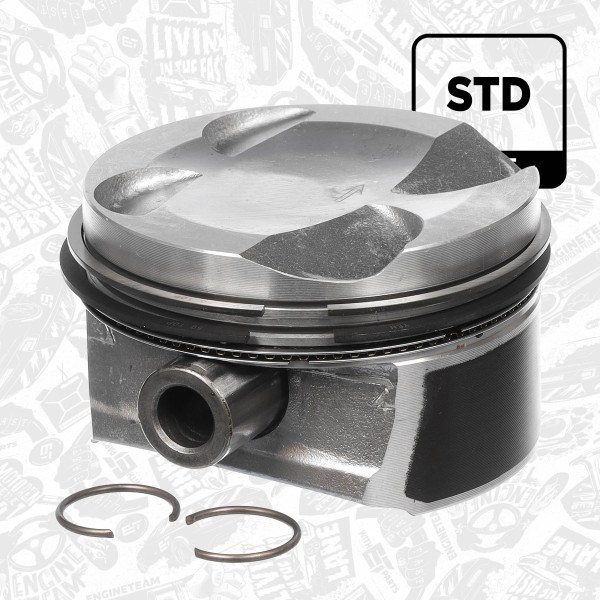

General information
| Code: | PM011000 |
| Brand: | ET ENGINETEAM |
| Title: | Piston |
| Car: | Citroen C4 C5 Berlingo Peugeot 207 208 508 Mini Cooper 5FS EP6C N12B16A Euro 5 |
| Weight : | 0,55 kg |
Criteria
| Supplementary Article/Supplementary Info: | with piston rings |
| Supplementary Article/Supplementary Info: | with piston pin |
| Recess Depth 1 [mm]: | 2 mm |
| Compression Height [mm]: | 27,5 mm |
| Top Land Height [mm]: | 7,5 mm |
| Cylinder Bore [mm]: | 77 mm |
| Recess Diameter [mm]: | 56,60 mm |
| Bolt Length [mm]: | 43 mm |
| Valve Pocket Depth 1 [mm]: | 5,7 mm |
| Valve Pocket Depth 2 [mm]: | 3,8 mm |
| Standard Size [STD]: | yes |
Show all
Show less
General information
| Code: | 41705600 |
| Brand: | KOLBENSCHMIDT |
| Title: | Piston |
| Car: | Citroen C4 C5 Berlingo Peugeot 207 208 508 Mini Cooper 5FS EP6C N12B16A Euro 5 |
| Weight : | 0,37 kg |

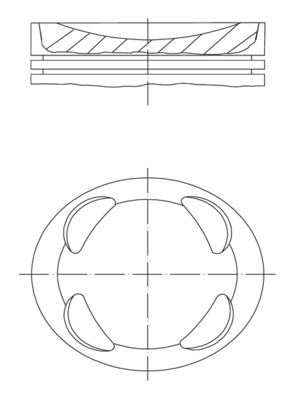

General information
| Code: | 081PI00104000 |
| Brand: | MAHLE |
| Title: | Piston |
| Car: | BMW |
| Weight : | 0,38 kg |
