Items for cross-reference number 407721DB
General information

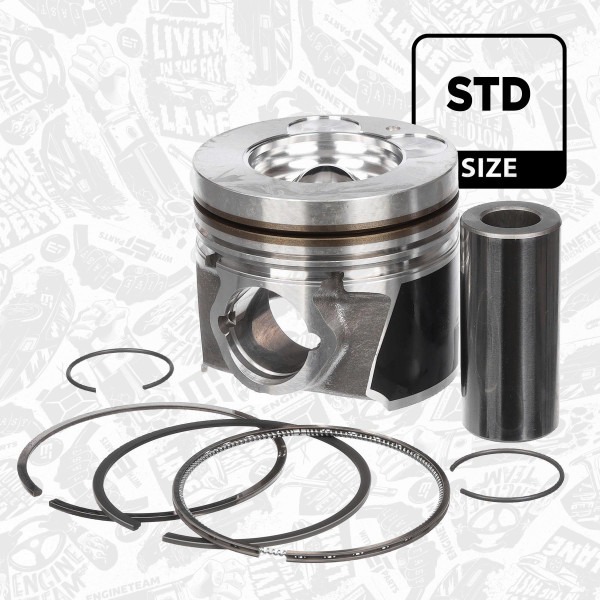

| Code: | PM004100 |
| Brand: | ET ENGINETEAM |
| Title: | Piston |
| Car: | Hyudai i20/i30/Elantra, Kia Carens/Ceed/Soul/Venga 1,6CRDi D4FB 2005+ |
Criteria
| Supplementary Article/Supplementary Info: | with piston rings |
| Recess Depth 1 [mm]: | 12,7 mm |
| Compression Height [mm]: | 42 mm |
| Cylinder Bore [mm]: | 77,2 mm |
| Bolt Head Diameter [mm]: | 28 mm |
| Recess Diameter [mm]: | 44 mm |
| Bolt Length [mm]: | 62 mm |
| Valve Pocket Depth 1 [mm]: | 2,9 mm |
| Valve Pocket Depth 2 [mm]: | 2,9 mm |
| Standard Size [STD]: | yes |
Show all
Show less
General information
| Code: | PM004150 |
| Brand: | ET ENGINETEAM |
| Title: | Piston |
| Car: | Hyudai i20/i30/Elantra, Kia Carens/Ceed/Soul/Venga 1,6CRDi D4FB 2005+ |
Criteria
| Supplementary Article/Supplementary Info: | with piston rings |
| Recess Depth 1 [mm]: | 12,7 mm |
| Oversize [mm]: | 0,5 mm |
| Compression Height [mm]: | 42 mm |
| Cylinder Bore [mm]: | 77,7 mm |
| Bolt Head Diameter [mm]: | 28 mm |
| Recess Diameter [mm]: | 44 mm |
| Bolt Length [mm]: | 62 mm |
| Valve Pocket Depth 1 [mm]: | 2,9 mm |
| Valve Pocket Depth 2 [mm]: | 2,9 mm |
Show all
Show less
