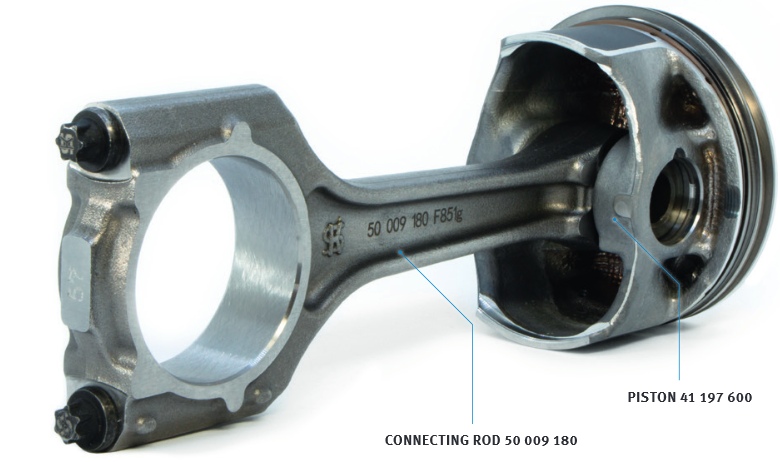

While repairing the engines 1,8TSI - especially with code CDAA - mechanics are often meeting particular problems with pistons. During the early years of manufacture of the vehicles, manufacturers were installing pistons with the pin of 21mm, later ŠKODA-VW changed it and they started with 23mm piston pin. During the repair and replacement of the pistons, the OE manufacturers recommend to use the 23mm pin for the right engines. The problem occurs when the engine has 21mm pin from the manufacture, then it is necessary to replace the connecting rod OE 06J98401H as well. Up until now there was only OE version of these rods sold in the kit of 4 pieces costing 700EUR. Now, the connecting rods are also available at the aftermarket, so you can do the replacement for a reasonable cost. We offer single connecting rods from Kolbenschmidt or ET Engineteam brand. Moreover, you can get the practical repair kits, which include connecting rods with pistons as well. All parts are in the list below.
Please, don't forget to log in for your discounted price.
General information
| Code: | 50009180 |
| Brand: | KOLBENSCHMIDT |
| Title: | Connecting Rod |
| Car: | ŠKODA-VW |
| Weight : | 0,57 kg |
General information
| Code: | OM0037 |
| Brand: | ET ENGINETEAM |
| Title: | Connecting Rod |
| Car: | Audi Seat Skoda VW A3 Sportback TT Roadster Altea XL Octavia II Superb II Yeti Golf 1,8 TSI CDAA CDHB 2010+ |
| Weight : | 0,64 kg |
Criteria
| Hole Spacing [mm]: | 111,2 mm |
| Tightening Torque [Nm]: | 50 Nm |
| Machining: | Forged |
| Machining: | cracked |
| Connecting Rod Design: | Trapezoidal Connecting Rod |
| Pin Diameter [mm]: | 23 mm |
| Weight [g]: | 565 g |
General information
| Code: | 41197600 |
| Brand: | KOLBENSCHMIDT |
| Title: | Piston |
| Car: | ŠKODA-VW |
| Weight : | 0,49 kg |
General information
| Code: | PM006900 |
| Brand: | ET ENGINETEAM |
| Title: | Piston |
| Car: | ŠKODA-VW |
| Weight : | 0,90 kg |
Criteria
| Cylinder Bore [mm]: | 82,51 mm |
| Bolt length [mm]: | 51 mm |
| Compression Height [mm]: | 29,8 mm |
| Recess Depth 1 [mm]: | 4,75 mm |
| Bolt Ø [mm]: | 23 mm |
| For OE number: | 06H107065DL |
| Supplementary Article/Supplementary Info: | with piston rings |
General information
| Code: | PM009000KS |
| Brand: | ET ENGINETEAM |
| Title: | Piston |
| Car: | 41197600S + 50009180 |
| Weight : | 5,30 kg |
Criteria
| Cylinder Bore [mm]: | 82,51 mm |
| Bolt length [mm]: | 51 mm |
| Compression Height [mm]: | 29,8 mm |
| Recess Depth 1 [mm]: | 4,75 mm |
| For OE number: | 06H107065DL |
| Supplementary Article/Supplementary Info: | with piston rings |
| Bolt Ø [mm]: | 23 mm |
| Component Number: | 50009180 |
| Component Number: | 41197600 |
| Scope of Supply: | includes components Kolbenschmidt + Elring |
General information
| Code: | PM009000ET |
| Brand: | ET ENGINETEAM |
| Title: | Piston |
| Car: | ŠKODA-VW |
| Weight : | 5,30 kg |
Criteria
| Cylinder Bore [mm]: | 82,51 mm |
| Bolt length [mm]: | 51 mm |
| Compression Height [mm]: | 29,8 mm |
| Recess Depth 1 [mm]: | 4,75 mm |
| For OE number: | 06H107065DL |
| Supplementary Article/Supplementary Info: | with piston rings |
| Bolt Ø [mm]: | 23 mm |
| For OE number: | 06J198401H |
| Scope of Supply: | includes components ET Engineteam + Elring |
